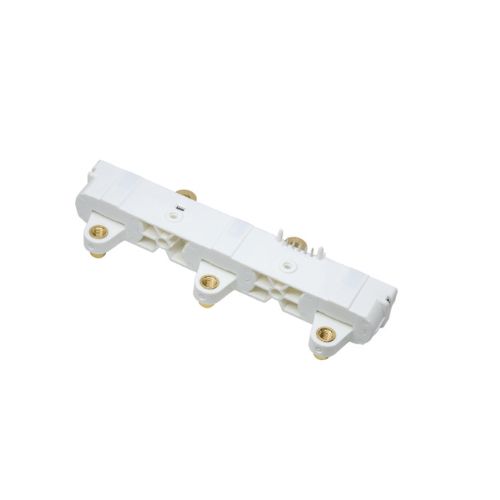

HAH3DR 1100-S07/SP1
Open Loop Hall Effect Technology
HAH3DR S07B (HAH3DR S07)
Model details
HAH3DR 900-S07/SP4
Open Loop Hall Effect Technology,,Full compatibility with Infineon Hybrid PACK Drive Module Short Bus-bar version
- Series
-
HAH3DR S07B (HAH3DR S07)
- Measurement
-
Current
- Nominal Value
-
900 A
- Measuring Range
-
900 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 2 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 2.7 %
- Op. Temperature
- -40 °C / 125 °C
- Technology
-
Open loop Hall effect
- Mounting
-
PanelPCB
- Applications
-
Automotive Motor Control
FRONT
BACK
LEFT
RIGHT
