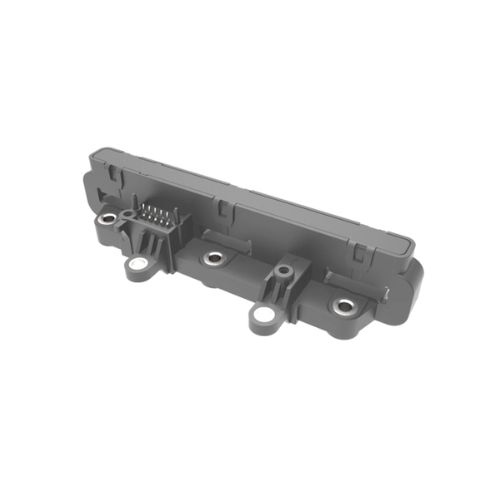

HAH3DR 1000-S07/SP32
HAH3DR S07A (Avalon)
High performance three phase current sensor +/-1500A. Suitable for high power motor control and inverter applications, with high integration
Model details
HAH3DR 800-S07/SP3
Open Loop Hall Effect Technology,,Full compatibility with Infineon Hybrid PACK Drive Module Short Bus-bar version
- Series
-
HAH3DR S07A (Avalon)
- Measurement
-
Current
- Nominal Value
-
800 A
- Measuring Range
-
800 A
- Second. Nominal Signal
-
Voltage
- Second. Nominal Signal Value
- Instantaneous 2.5 +/- 2 V
- Primary Signal
-
AC + DC
- Supply Voltage
-
External DC Unipolar
- Supply Voltage Range
- 5 - 5 V
- Accuracy
- 3.5 %
- Op. Temperature
- -40 °C / 125 °C
- Technology
-
Open loop Hall effect
- Mounting
-
Panel
- Applications
-
Automotive Motor Control
FRONT
BACK
LEFT
RIGHT
