LXSR Series
Closed Loop Hall effect current sensors performing at the level of Fluxgate technology without the added cost.
LXSR – Current sensors

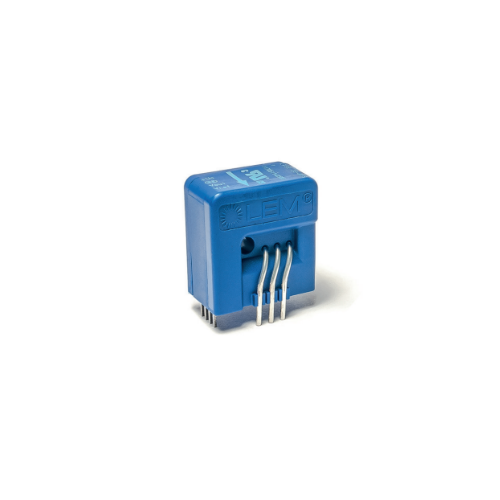

The LXSR Series builds upon the LXS Series by offering reference voltage access, enabling greater flexibility for signal scaling and system calibration. These current sensors are designed for precise measurement of DC, AC, and pulsed currents up to 25A, with integrated galvanic isolation.
Optimized for industrial use, LXSR sensors combine low offset drift, integrated primary conductors, and reliable operation from -40 °C to +105 °C.
Leveraging closed‑loop Hall‑effect technology, the LXSR Series delivers high measurement performance comparable to Fluxgate solutions, without the added system cost.
LXSR – Features & Benefits
Main characteristics
- Closed loop multi-range current transducer
- Voltage output
- Unipolar supply voltage
- Compact design for PCB mounting
- Cost attractive
- PCB mounting in various footprints (3 or 4 primary pins with various layouts)
- With integrated primary conductors
- Compact design
- High overall accuracy at +105°C up to 2%
Benefits
- Very low offset drift
- Very good dv/dt immunity
- Fast response time <0.4 µs
- LTSR footprint compatible
- Reference pin with two modes: Ref IN and Ref OUT
- Extended measuring range for unipolar measurement
Typical applications
LXSR products are tailored for use in industrial settings and are intended to meet a wide range of application needs.
- AC variable speed and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Solar inverters
LEM LXSR – Download & Technical Characteristic
| Product | Check stock | Document | Nominal value | Secondary Nominal Signal Value | Op. Temperature |
|---|---|---|---|---|---|
| LXSR 6-NPS | Datasheet 3D | 6 A | 2.5 +/- 0.625 V | -40 to 105 °C | |
| LXSR 15-NPS | Datasheet 3D | 15 A | 2.5 +/- 0.625 V | -40 to 105 °C | |
| LXSR 25-NPS | Datasheet 3D | 25 A | 2.5 +/- 0.625 V | -40 to 105 °C |
