HABT Series
Cost efficient insulated current sensor for battery management system +/-100A

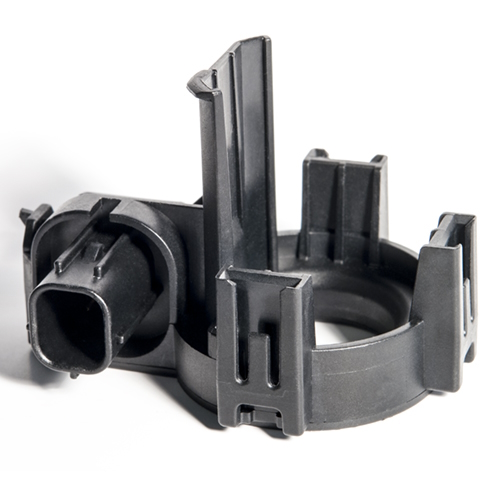

HABT Series – Automotive current sensors
The HABT Series expands the HAB Series by integrating both current measurement and temperature monitoring within a single compact device. Designed for high‑power automotive environments, HABT sensors measure DC, AC, and pulsed currents up to ±100 A with full galvanic isolation, and deliver current information to the ECU via a ratiometric voltage output.
In addition, HABT current sensors integrate an NTC thermistor, providing accurate ambient temperature feedback through the same waterproof connector used for current measurement connections.
Based on open‑loop Hall‑effect technology, the HABT Series is optimized for advanced automotive energy management systems that require both current and temperature data for safe and efficient operation.
HABT – Features and benefits
Main characteristics
- Open‑loop Hall‑effect transducer
- Unipolar +5 V DC supply
- Primary current measurement up to ±100 A
- Maximum RMS admissible primary current limited by cable, magnetic core, or ASIC temperature (T < +150 °C)
- Ratiometric voltage output for current measurement
- Integrated NTC thermistor for ambient temperature sensing
- Designed for low‑voltage automotive architectures
Benefits
- Accurate current and temperature feedback in one compact package
- Very low thermal offset and sensitivity drift for stable ECU readings
- High linearity across the entire measurement range
- No insertion losses
Typical applications
The HABT Series is ideal for systems requiring both current and temperature monitoring, including:
- Battery pack monitoring with thermal feedback
- Hybrid and electric vehicles
- Utility and commercial EV platforms
LEM HABT – Download & Technical Characteristic
| Product | Document | Nominal value | Supply Voltage range | Accuracy | Bandwidth | Sensitivity | Op. Temperature | Mounting |
|---|---|---|---|---|---|---|---|---|
| HABT 100-V/SP10 | Datasheet 3D | 100 A | 5 to 5 | 0.7% | 0 to 80 Hz | 20 mV/A | -40 to 105 °C | Busbar |
| HABT 100-V/SP20 | Datasheet 3D | 100 A | 5 to 5 | 3.75% | 0 to 80 Hz | 20 mV/A | -40 to 105 °C | Busbar |
