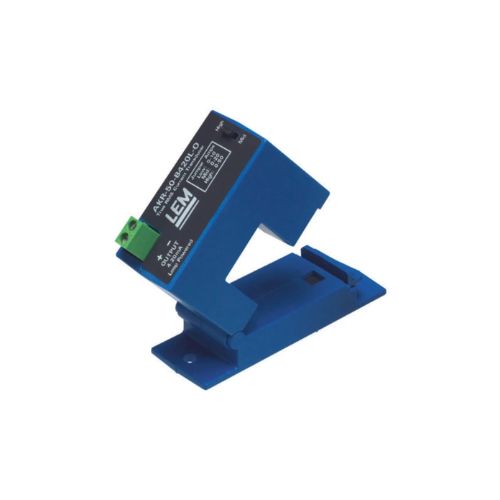

AKR – True RMS Split Core Current Transformers
The AKR Series split‑core current transformers are engineered for applications requiring True RMS measurement of AC currents, ensuring accurate monitoring even in the presence of distorted waveforms. Designed for currents ranging from 2 A to 2000 A, selectable by jumper, AKR sensors provide galvanic isolation and are mainly intended for panel mounting, with optional DIN‑rail integration.
Utilizing air‑core technology, AKR current transducers are available in both split‑core and solid‑core versions. Unlike the AK Series, AKR devices are exclusively offered with current output, emphasizing precision and signal integrity.
Selected models, such as the AKR 2000 C420L J, feature a large 76 mm aperture, supporting applications with larger conductors. The AKR Series is particularly suited for renewable energy and power supply applications where accurate True RMS current measurement is essential.
AKR – Features & Benefits
Features
- Measurement of AC currents with complex waveforms
- True RMS responding, ensuring accurate results on distorted signals
- Designed for VFD (Variable Frequency Drive) and SCR‑controlled loads
- Available in split‑core or solid‑core versions
- Current output only, optimized for precision measurement
- Self‑powered or loop‑powered operation
- Panel mounting design
- Jumper‑selectable current ranges
Main characteristics
- Large aperture, including versions up to 76 mm
- High isolation between primary and secondary circuits
- Easy to mount
Typical applications
In addition to standard renewable energy and power supply uses, the AKR Series is specifically designed for demanding measurement scenarios such as:
- VFD‑controlled loads: Monitoring motor and load behavior from the VFD output
- SCR‑controlled loads: Accurate measurement of phase‑fired or burst‑fired SCR systems
- Switching power supplies & electronic ballasts: True RMS sensing for precise input power measurement
Certain models, such as AKR 2000 C420L J, are particularly suited for:
- Large pumps: Dry‑run detection through current monitoring
- Power generation systems: Measuring generator output
- Electric heating elements: Fast load monitoring, faster than temperature‑based sensors
LEM AKR – Download & Technical Characteristic
| Product | Check stock | Document | Nominal value | Supply Voltage | Op. Temperature |
|---|---|---|---|---|---|
| AKR 5 B420L | Datasheet | 2 A, 5 A | Loop Powered | -20 to 50 °C | |
| AKR 5 C420L | Datasheet | 2 A, 5 A | Loop Powered | -20 to 50 °C | |
| AKR 50 B420L | Datasheet | 10 A, 20 A, 50 A | Loop Powered | -20 to 50 °C | |
| AKR 50 C420L | Datasheet | 10 A, 20 A, 50 A | Loop Powered | -20 to 50 °C | |
| AKR 200 B420L | Datasheet | 100 A, 150 A, 200 A | Loop Powered | -20 to 50 °C | |
| AKR 200 C420L | Datasheet | 100 A, 150 A, 200 A | Loop Powered | -20 to 50 °C | |
| AKR 2000 C420L J | Datasheet | 1000 A, 1333 A, 2000 A | Loop Powered | -20 to 50 °C |
AKR Sensors – ASK FOR SAMPLES / QUOTATIONS
Looking to receive samples or a quotation? Please click on the contact button below and provide us with the information you need on this product series. Our sales team will get back to you shortly.
